The brief was to produce a design for shed to house specific forestry equipment that could be constructed by a guided volunteer team from locally grown timber, converted on site.



The Structural Design was to reflect the species to hand: Sycamore, Scots Pine, Larch & Alder. With length and stock restrictions.



Already sawn on site with a portable saw table into nominal sizes of 6" x 3", 6" x 2" & 6" x 1", all with the nominal dimensional variations expected from the method of conversion.



The detail drawing set allows for pre-fabrication of frames for erection by log handling equipment already on site.

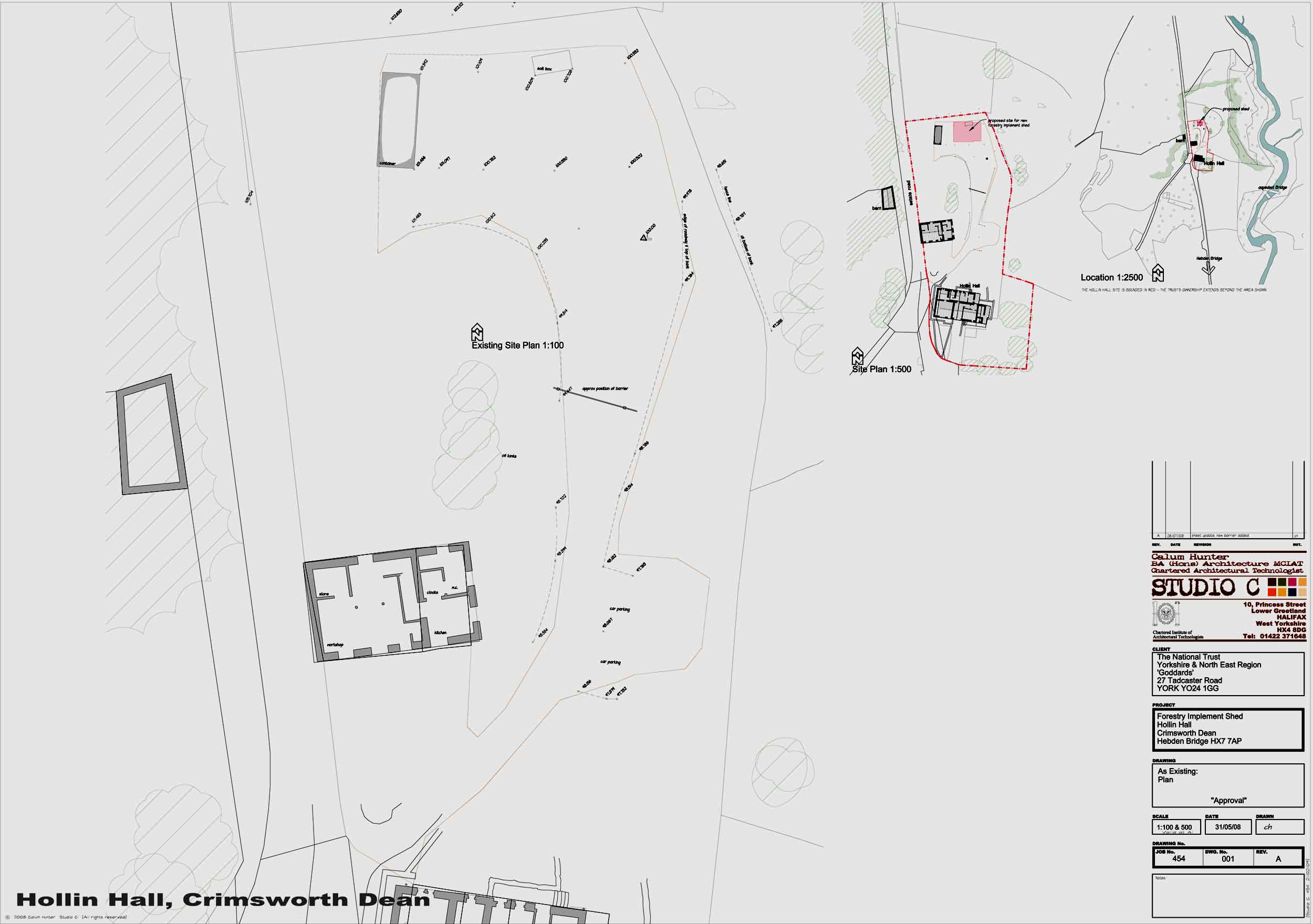

The Site Survey

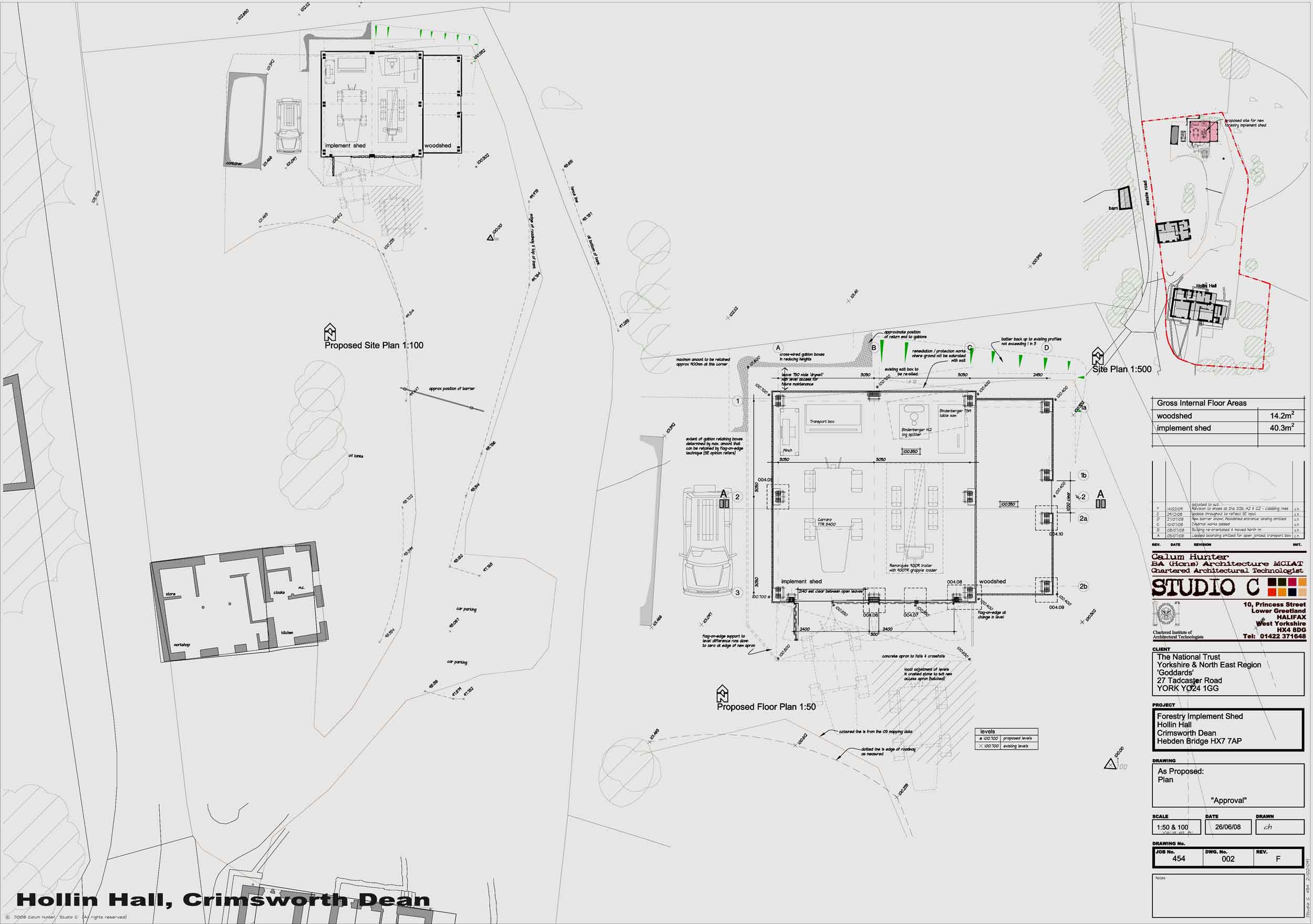

General Arrangement

Elevations

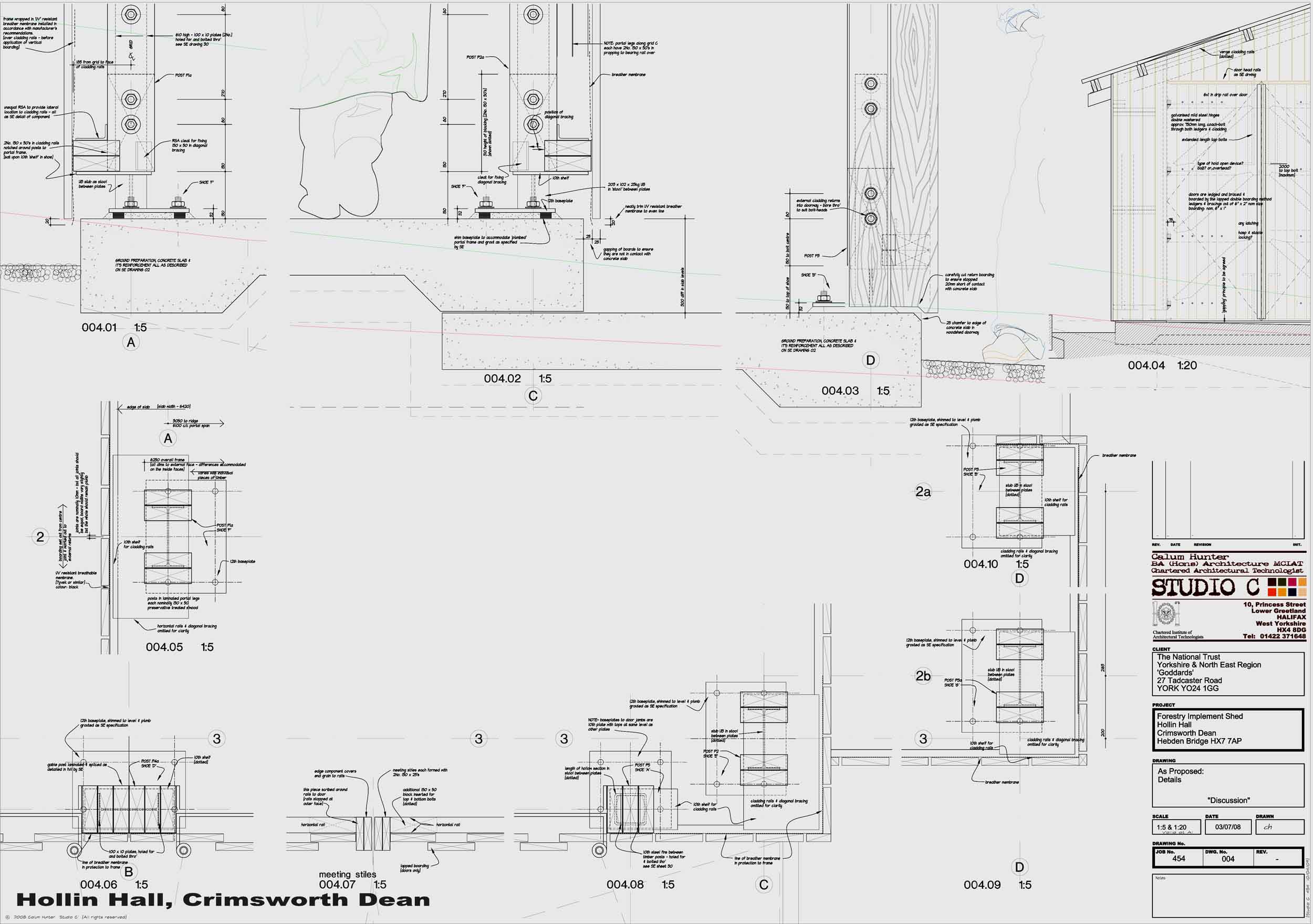

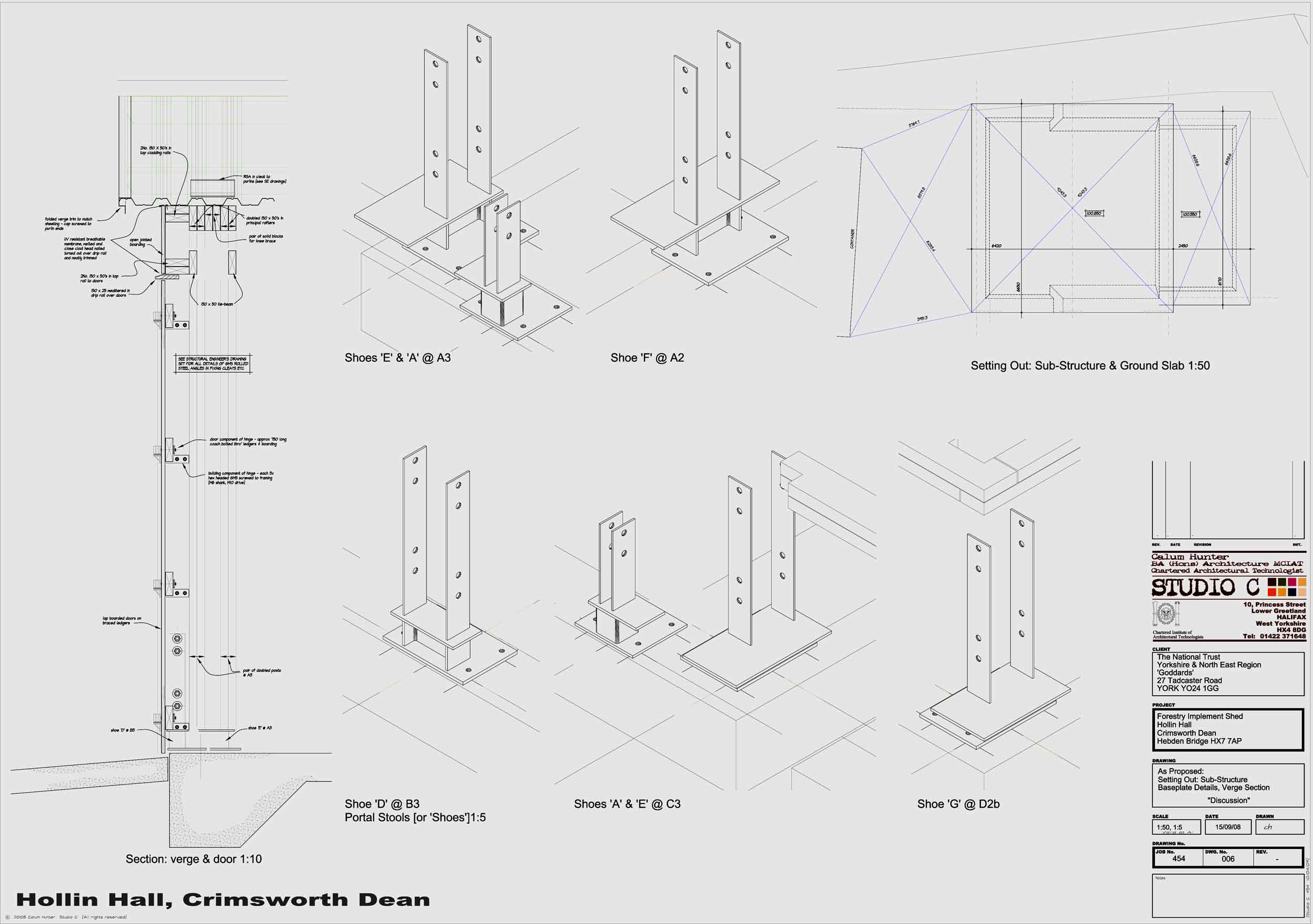

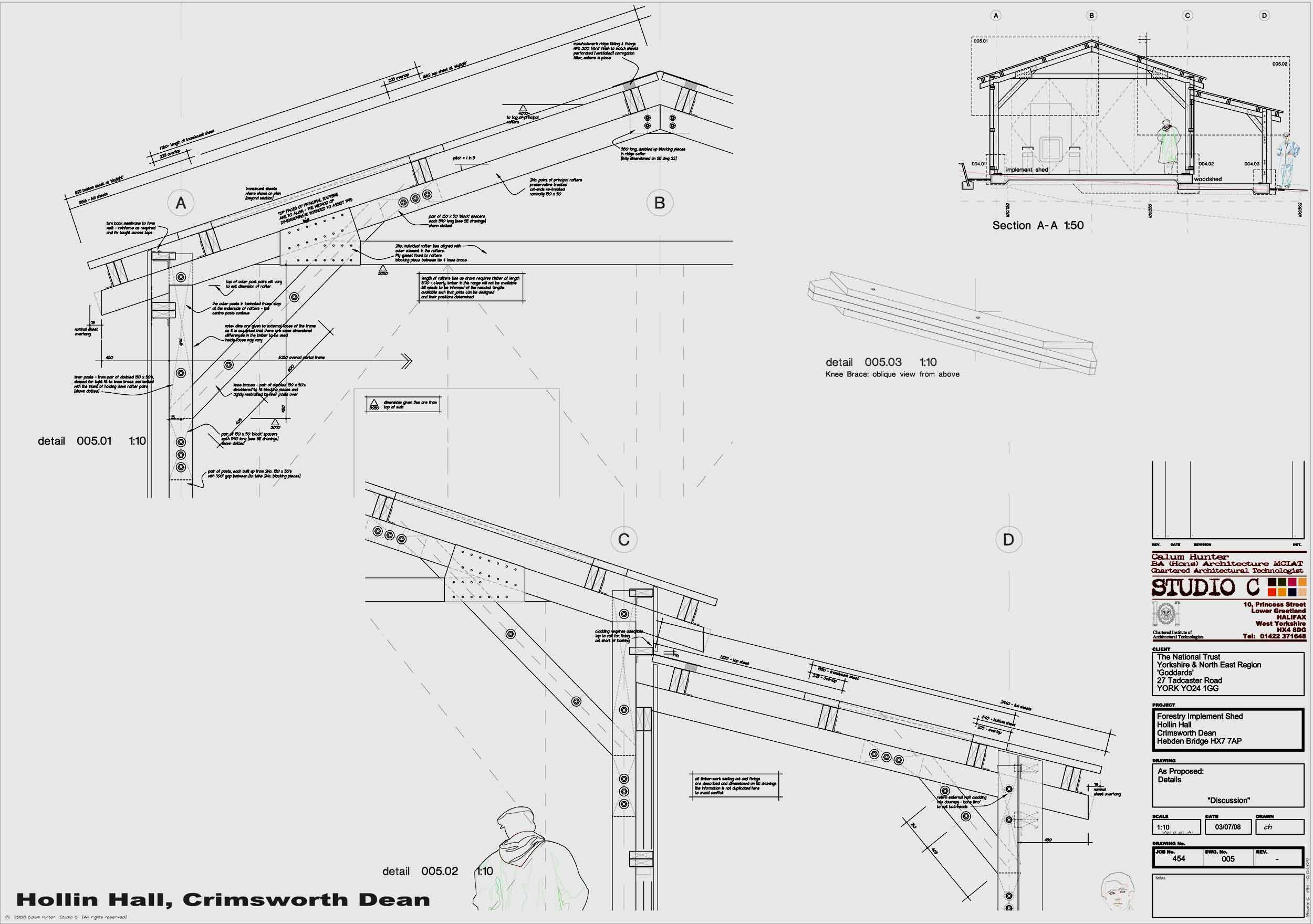

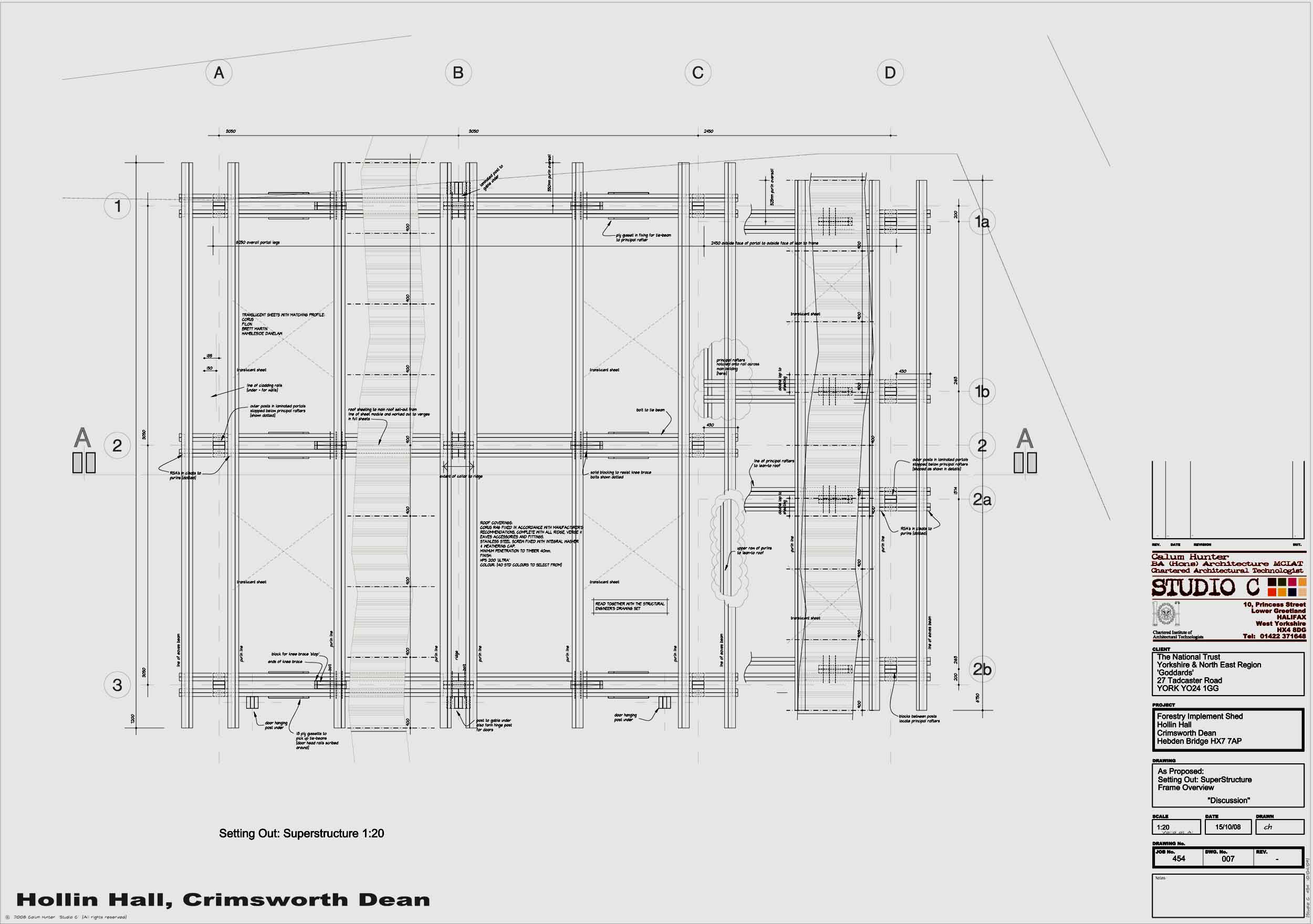

Details

Details

Details

Roof Plan

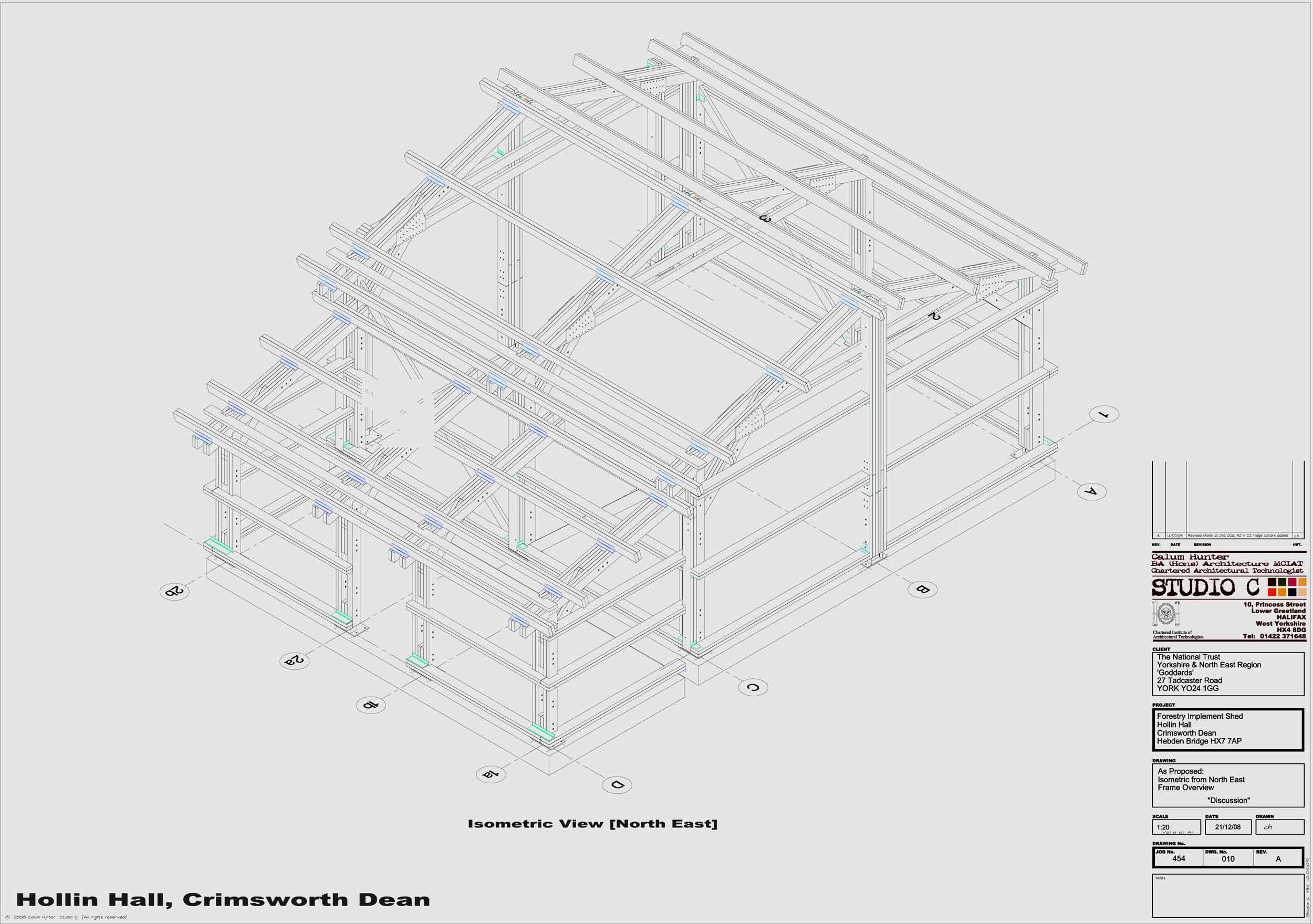

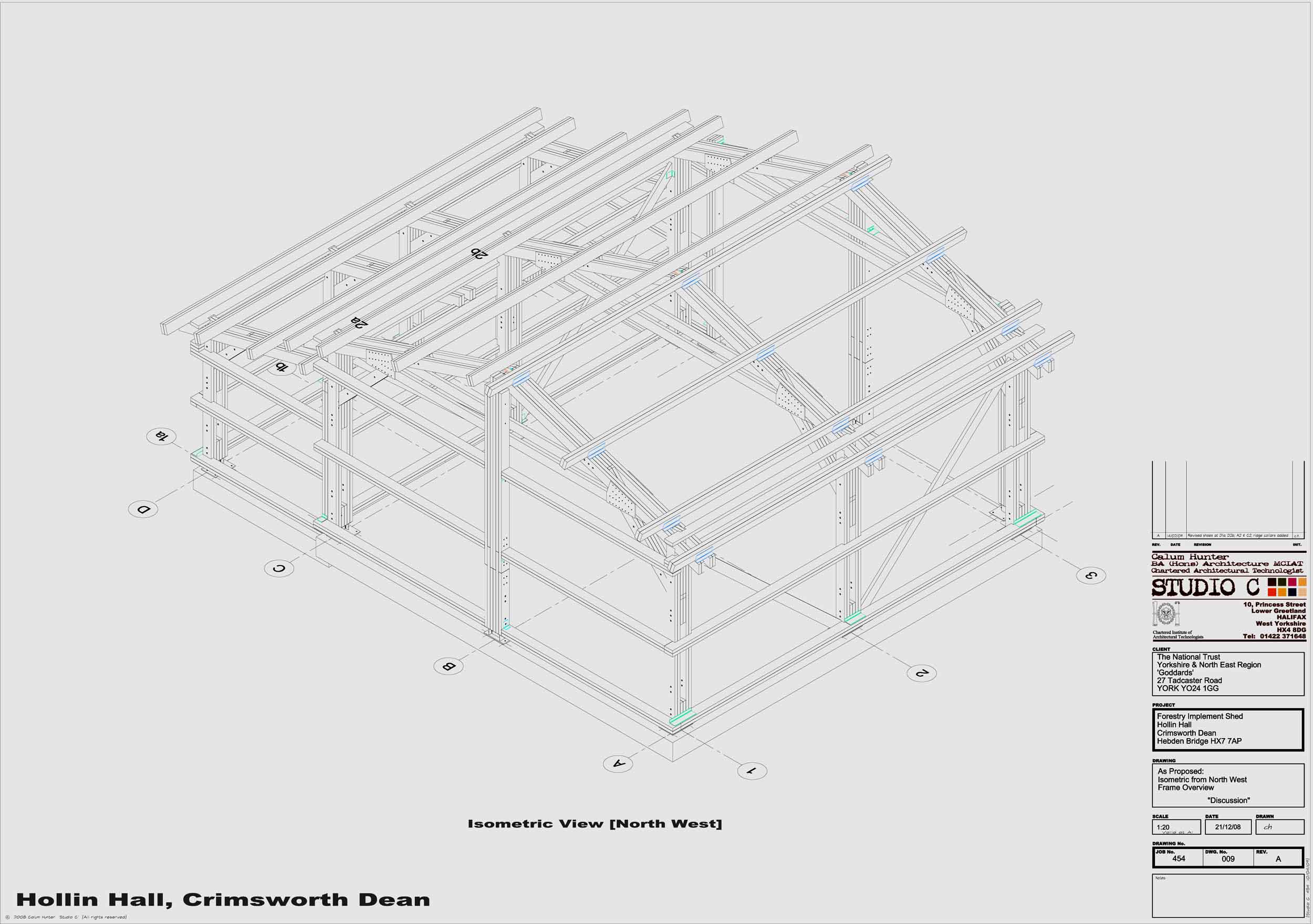

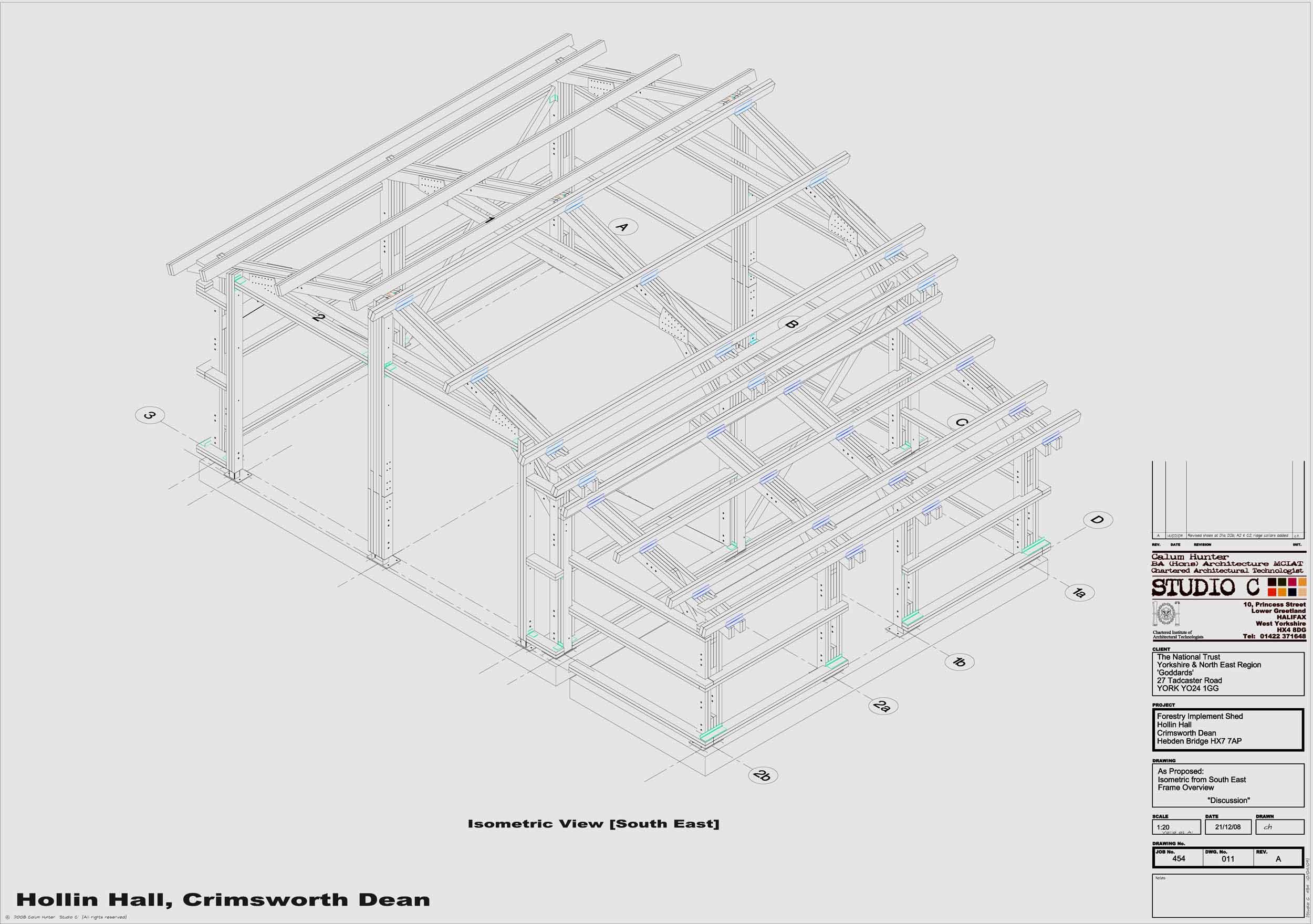

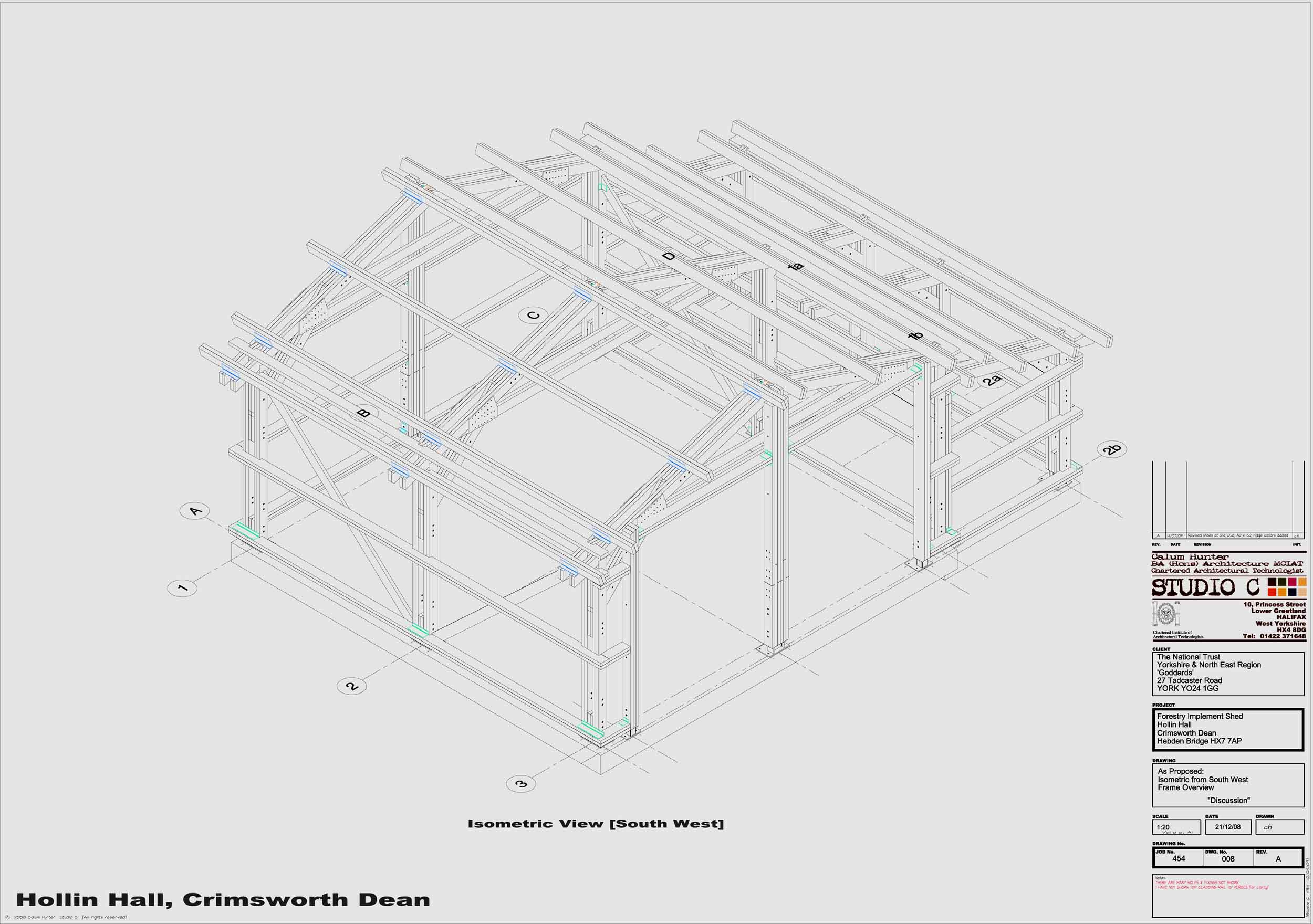

Axo

Axo

Axo

Axo

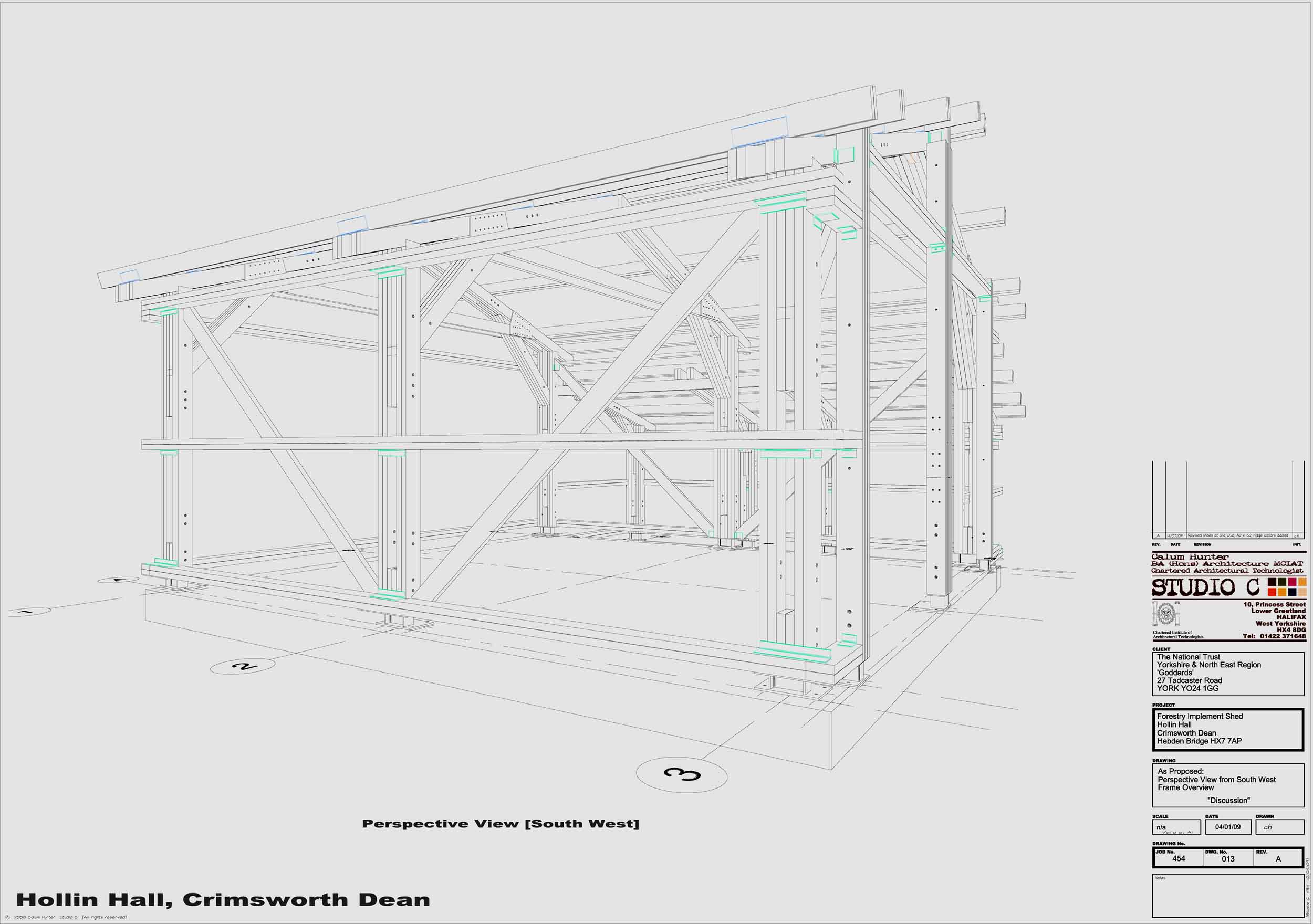

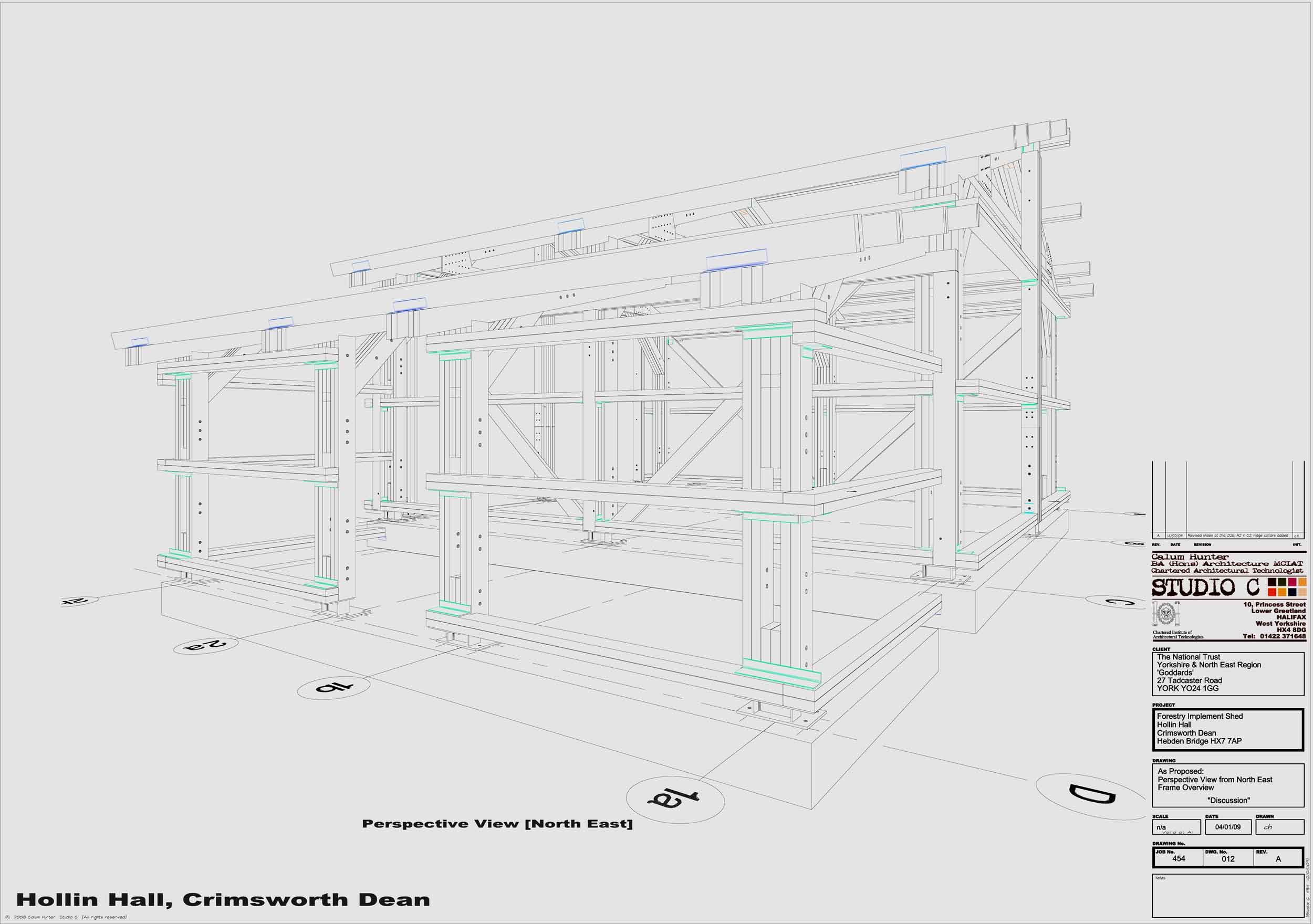

Perspective

Perspective

A 3d model was generated, including all components in the construction, to explore sequences of fabrication and to produce the Axonometric & Perspective views above.
